CPM TYPE MAGNETIC DRIVE CHEMICAL PUMP
 |
CPM TYPE |
- Lead-free, Sealess design.
- Superior corrosion-resistant performance.
- Easy maintenance and assembly.
- Durability, reliability and safety.
SPECIFICATION:
Type |
Model |
Performance Chart |
Inlet / Outlet (mm) |
Motor Power (HP) |
Max. Manometric Head (m) 50HZ /60HZ |
Max. Flow Rate (L/MIN) 50HZ / 60HZ |
CPM |
4005 |
A |
40/40 |
0.5 |
12/11.5 |
285/280 |
CPM |
4010 |
B |
40/40 |
1 |
18/19 |
355/360 |
CPM |
5020 |
C |
50/40 |
2 |
23/23 |
390/422 |
CPM |
5030 |
D |
50/40 |
3 |
23/22 |
465/545 |
CPM |
5050 |
E |
50/50 |
5 |
24/34 |
560/650 |

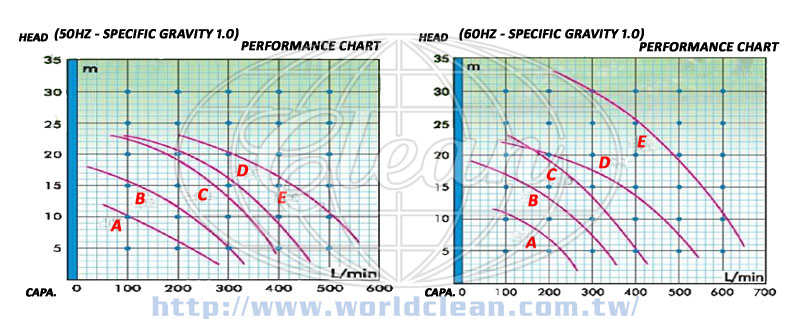

PERFORMANCE CHART:
 |
Click the image for detail
|
