CPL TYPE CHEMICAL PUMP
 |
CPL TYPE |
- Specially designed cooling for shaft seal. The built-in Teflon bellow seal features automatic cooling performance, no circulated cooling hose required.
- Vacuum self priming design. Built with a choke valve fully prevents liquid back-flow in the pump.
- Superior corrosion-resistant performance. Material-CFRPP, FRPP, PVDF (Teflon.)
- Strong acid and alkaline resistant.
SPECIFICATION:
Type |
Model |
Performance Chart |
Inlet / Outlet (mm) |
Motor Power (HP) |
Max. Manometric Head (m) 50HZ /60HZ |
Max. Flow Rate (L/MIN) 50HZ / 60HZ |
CPL |
40012L |
A |
40/40 |
1 |
14/16 |
230/240 |
CPL |
40014L |
B |
40/40 |
1 |
7/9 |
220/270 |
CPL |
40022L |
C |
40/40 |
2 |
16/18 |
270/300 |
CPL |
40022H |
D |
40/40 |
2 |
19/22 |
290/330 |
CPL |
50032L |
E |
50/50 |
3 |
17/21 |
400/430 |
CPL |
50032H |
F |
50/50 |
3 |
23/29 |
390/480 |
CPL |
50052H |
G |
50/50 |
5 |
26/34 |
460/600 |
CPL |
75052H |
H |
75/75 |
5 |
28/35 |
800/860 |
CPL |
75072H |
I |
75/75 |
7 1/2 |
29/35 |
920/960 |
CPL |
75102H |
J |
75/75 |
10 |
29/42 |
940/1000 |

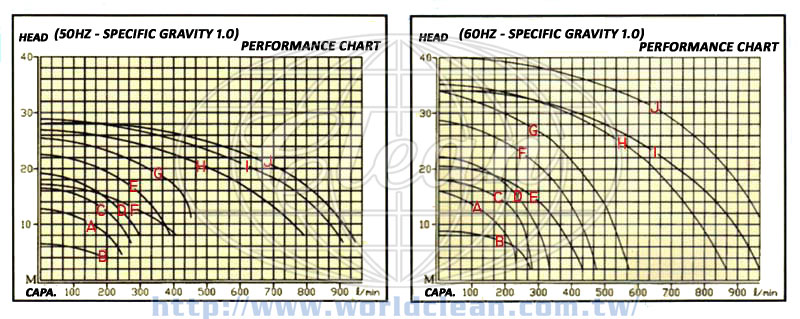

PERFORMANCE CHART:
 |
Click the image for detail
|
DIMENSION DRAWING:
 |
 |
